Brief Description about Our Services:

Our MES team of experts can give you all kinds of Testing and commissioning & servicing of circuit breakers. We can work the voltage levels LV, MV. We carry out Testing &commissioning for circuit breakers. We have our own advanced testing equipment to carry out necessary testing of the circuit breakers and to get the work done quickly without depending on anybody.

Circuit Breaker Service & Conducting tests: Perform various types of Circuit Breaker service & testing’s such as

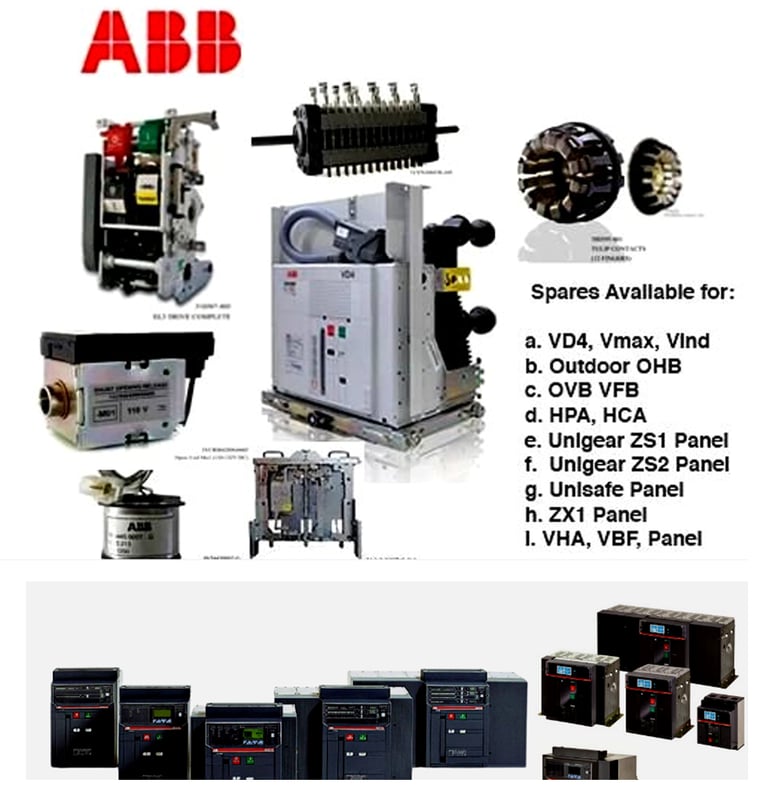

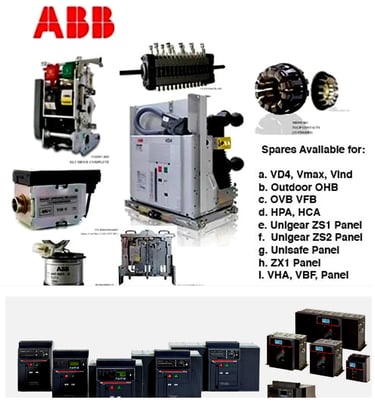

• ABB LV & MV switchgear UP TO 33KV spares and service.

• Circuit Breakers Servicing, Testing & Commissioning (SF6, VCB, OCB, ACB)

• IR Test.

• Contact Resistance Test (CRM).

• Timing Test

• Control Wiring Check Test.

• Tripping test

• Visual inspection

• Cleaning and lubricating

• Visual inspection for any broken parts and replace as needed.

• Clean and lubricate all mechanical linkages.

• Removing covers and arc extinguishing shields,

• Inspect for damage, wear and deterioration, clean and lubricate as required.

• Checking, cleaning main contacts, cleaning all covers and arc shields.

• Checking security of all control wiring and associated fitted components.

• Testing mechanical operations and reinstate covers and arc extinguishing shields.

• Performing mechanical and electrical operation of the breaker on test position and carrying out injection test on electronic trip devices to calibrate characteristics against set points.

• Checking UVT (Under Voltage Trip) release pick up and release & checking motor mechanism

• If maintenance, protection tests have been completed with success, an Inspection and Test Certificate can be issued.

Activities we do

Relay Testing & Calibration

We do inbuilt testing of ACB. Inbuilt Release are installed in ACB's to provide protection against any overload, short-circuit and earth faults that arises, It is therefore very important to get the release diagnosed periodically to make sure it functions smoothly.

• Transformer Differential Relay

• Motor/Generator Protection Relay

• Directional Relay

• REF Relay

• Transformer/Motor/Generator Relay

• Bus bar Protection Relay

• Feeder Protection Relay

• Numerical relay

• Auxiliary Relay

• Installation & Testing of all types of Electromagnetic, Digital & Numerical Relays.

• CT live current measurements, checking of relay wiring & its tightness.

• Relay Testing by Primary & Secondary Injection Tests.

• All Types of Relay Calibration to confirm if the operation of the relay is within the trip time and pick up current tolerances.

• Relay setting, Relay programming and Scheme checking.

• Test-check the functioning of Alarms, which notify of the errors in the internal circuit

• Testing of Inbuilt release of ACB using tests kits.

Activities we do

CT & PT Testing

Following tests are done on CT :

• Primary injection test.

• Polarity Test.

Following tests are done on PT :

• Polarity Test.

• Turn Ratio Test.

Breaker Panel Spares

Supply of all ratings, makes, models of circuit breakers, relays, panel accessories and all other parts. Spares are procured and checked as per standard quality norms

MES has complete stock of MV/LV Breaker spares of all Makes like L&T, CG, ABB, Schneider, Siemens, etc. All Spares & Accessories Are Available With Us Like:

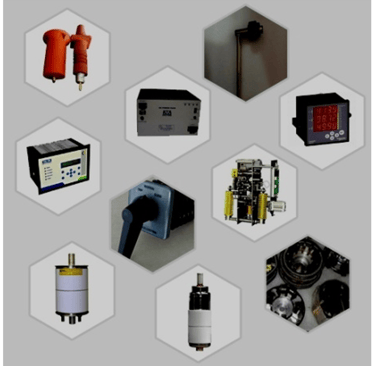

OCB/ SF6/VCB/ACB Breaker Spares

• Vacuum Interrupter Bottle

• Jaw Contact

• Moving Contact

• Fixed Contact

• Cradle Contact

• Pole Assembly

• Trolley Bushing

• Housing Spout

• Separator

• Support Insulator

• Cradle Terminal

• Arc Chute

• Spring Charge Motor

• Operating Handle

• Shutter Mechanism

• Closing Coil

• Tripping Coil

• Operating Mechanism

• Rack in-out mechanism

• ACB Release

• CT sensor & CT sensing Kit

• Breaker Front Facials

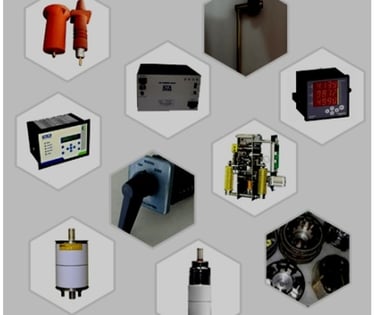

HT / LT Panel Spares & Accessories

• IDMT Relay

• Auxiliary Relay

• Trip Circuit Supervision Relay

• Master Trip Relay

• Earth Fault Relay

• Under Voltage / Over Voltage Relay

• Instantaneous Differential Relay

• Restricted Earth Fault Relay

• Reverse Power Relay

• Negative Sensitive Relay

• Inbuilt Release For ACB

• LED indicator

• Annunciator Panel

• Multifunctional Meter

• Ampere Meter / Voltage Meter

• Frequency HZ Meter

• Kwh Meter

• Charging Motor & Its Gear Mechanism

• Buzzer / Hooter

• Auxiliary Contacts

• Space Heaters

• Thermostat

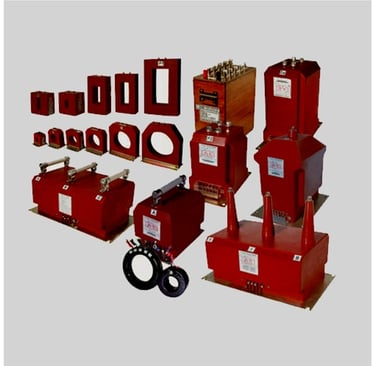

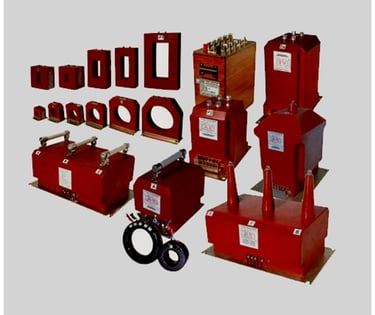

• C.T. (11KV Ct / 33KV PT)

• P.T. (11KV PT / 33KV PT)

• P.T. Fuse

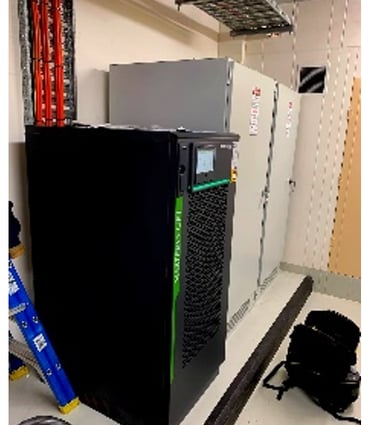

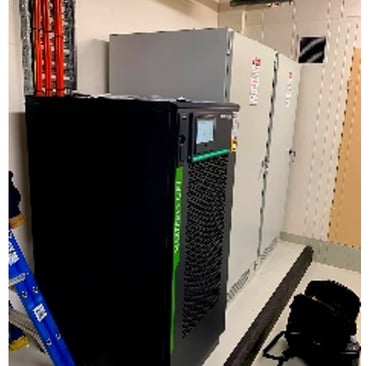

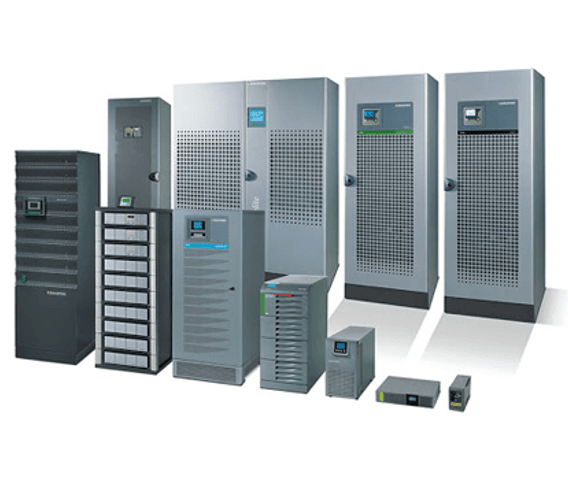

Socomec –UPS, COS, ATYS sales and service.

We supply Socomec Switches with various protection models such as

• Automatic Transfer Switches,

• SOCOMEC Bypass Changeover switches,

• Manual changeover switches, ATS Controllers

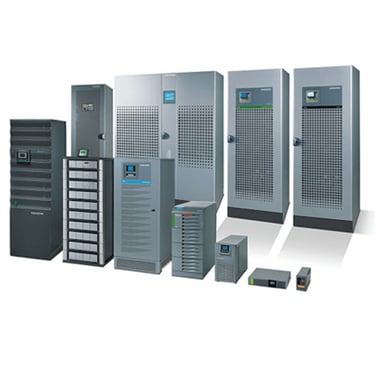

• UPS.

Socomec Switches are designed for the safe transition of a load supply between a normal and an alternate source in power systems.

We provide Manual, remote-operated, and automatic transfer switches from 16 to 630 amps are available.

We MES specialize in UPS Uninterruptible Power Supply Services, Sales, Installation & Maintenance.

Transformer Services

• Transformer Erection and installation & Testing’s

• Transformer Oil Filtration & Dehydration

• Leakage Arresting & Re-Gasketing

• Transformer Body Paint & Reconditioning

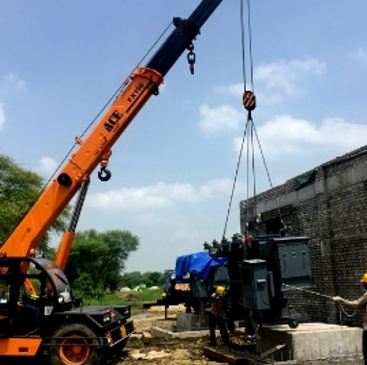

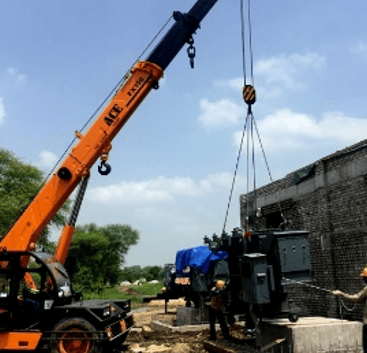

Transformer Erection and installation & Testing’s

Whether you are installing a brand new, Repaired or Even Refurbished unit or if there is a reallocation of an existing unit. MES offers a total solution to meet your needs including Transportation Logistics, Loading/Unloading onsite, Erection, Testing, Pre-commissioning & Full Commissioning of Transformer.

For a Trouble-Free Operation & Uninterrupted Power Supply, We recommend the user for the AMC services.

Transformer Testing

• Insulation Resistance (Megger).

• Transformer Turn Ratio.

• Voltage Ratio.

• Polarity and Phase Relation.

• Winding Resistance Test.

• Vector Group Test.

• Magnetic Balance Test.

• Magnetizing Current Test.

• Oil Dielectric Strength.

• OTI/WTI/Bucholz Relay/OSR/MOG Tests.

Activities we do

Transformer Oil Filtration & Dehydration

We assure you to arrange our mobile filtration and provide On-site oil filtration and maintenance.

Leakage Arresting & Re-Gasketing

Thus, a Gaskets & Seal play a very vital role in sealing system between joints. Gasket leaks are developed over a period of time due to improper torques, poor quality gasket material, improper size gaskets & mostly wear and tear.

Transformer Body Paint & Reconditioning

We provide On Site Transformer Body Painting. No matter how rusty your equipment is. We can re-paint your equipment and make it look like a new one.

Supply all spares of all ratings, makes, models of transformer. Spares are procured and checked as per standard quality norms

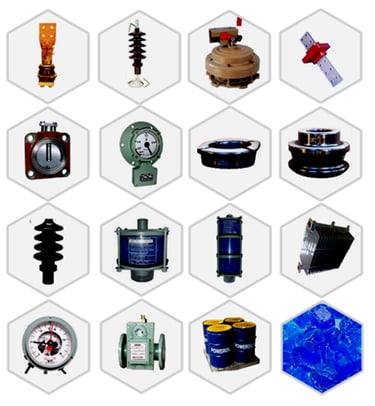

Transformer Spares

• Transformer Oil (Mineral/Ester)

• Buchholz Relay

• (MOG) Magnetic Oil Level Gauge Relay

• Oil Surge Relay

• Pressure Relief Valves

• Breathers (Clear View/Metallic)

• Silica Gel

• (OTI) Oil Temperature Indicator

• (WTI) Winding Temperature Indicator

• Marshalling Box

• Oil Thermometers

• Tap Changer Switch & Handle (For Off Load Transformer)

• Bushing Insulators HT & LT (Epoxy Bushing/Ceramic)

• Bushing Rod HT & LT

• Radiators

• Valves (Radiator Valves/Drain Valves)

• Gaskets & Oil Seals

• Sight Glass

OLTC Spares

• Fixed Contact

• Moving Contact

• Transition Resistance Assembly

• Phase Board

• Bushing Board

• Energy Accumulator Assembly

• Epoxy Arm Assembly

• Oil Seals & Gaskets

• Copper Tubes & Tapper Pins

• AVR Relay & TPI for RTCC Panel

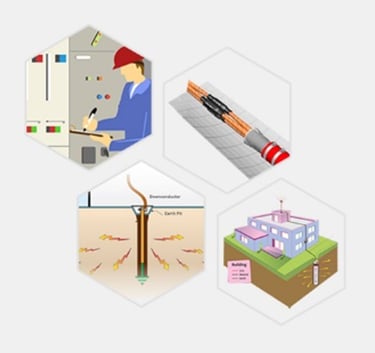

Earthing System

MES does all types of Earthing like Conventional Earth Pits (Plate Type, Pipe Type), Maintenance Free Chemical Earthing (Rod Type, Pipe Type).

Cable End Termination Service & Tests

We are offering the MV/LV Cable termination services with professional jointers who are well versed with Straight Through type/Indoor/Outdoor Type. We ensure that all job work is performed safely and as per the guidelines.

• IR TEST

• Hi Pot Test

Hipot Testing Services by the Experts

A Hipot test is a non-destructive test which uses a high voltage current to "flow" through the insulation to make sure that it doesn't break down and cause any leakage current.

MES is fully equipped with Calibrated Instruments & Competent Test Engineers. We undertake DC Hipot Tests on HT/LT XLPE Cables, MV/LV Panels.

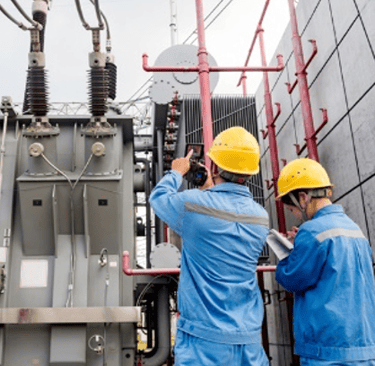

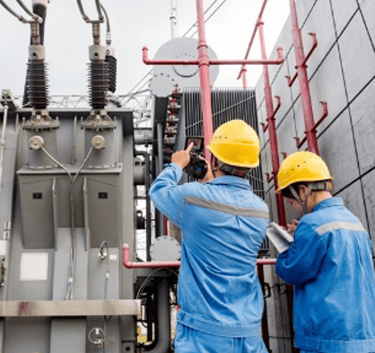

Thermography Audit

Liasoning & Electrical Contracting

Thermography Testing for your Switchyard, Transformer, Electrical Panels by MES Team.

We have association with officials of State Electricity Board, Safety Department, and PWD that allow us to offer the clients with flexible services within decided time frame.

• Submissions of application,

• Processing and obtaining Load Sanction,

• Drawing Approval for OEM and Testing Department.

• Obtaining Charging permission & Release for fresh connected load from State Electricity Board

• All Statutory Approvals

Our efficient services comprises of

Designing & Budget Estimation

We understand the preliminary steps before beginning of a project. We have expertise in providing the clients complete support in Designing as per the load requirement & preparing a commercial budget.

• Preparation of BOM & Scope definition

• Budget Estimation

• Efficient Layout Planning

• Designing

• Project Management

Our efficient services comprises of

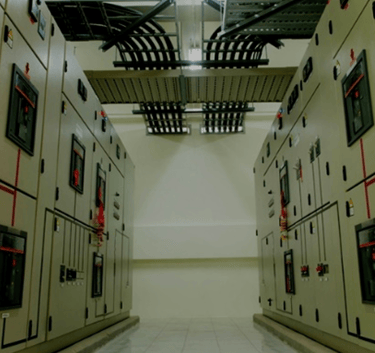

Sub stations

We are offering the MV/LV Substation pole structure work along with Cable termination services with professionals who are well versed with Indoor/Outdoor Type. We ensure that all job work is performed safely and as per the guidelines.

Substations transformer may be classified according to metering arrangements (MV or LV) and type of supply (overhead line or underground cable), Substations transformer are classified into two types:

1. Indoor substation

2. Outdoor substation

Outdoor substation is further classified into two types

• Pole mounted substation

• Plinth or Foundation mounted substation

MV/LV SUBSTATION ERECTION, TESTING, AND COMMISSIONING SERVICES

COMPONENTS AND MATERIALS

• Installation of Switchgear Panel & LV Chamber

• Coupling of MV/LV Panels at Site

• Testing of Current Transformers

• Installation of Bus PTs & Line PT

• Testing of line PTs + Bus PTs

• Circuit Breaker Timing Test

• Testing of Control Schematics/Interlocking

• HT cable end terminations& Joints

• Pin type insulator

• AB switch

• Lightning Arrester

• Circuit Breaker

• Distribution Transformer

• Earthing Materials

• DO Fuse

• Stay Wire

• MV cable

• Cable Joint & End Kits

• Petroleum Jelly

• CT’s & PT’s

• Battery Chargers ,Power Packs and SMPU’s

• Control and Relay panels

• HT,LT and Control cables

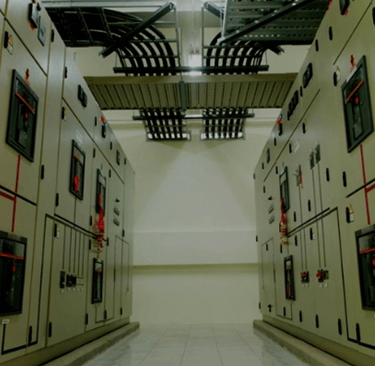

Projects

MES has an industry-wide reputation as the single source solution to all of your substation construction and maintenance needs including estimating and support, material procurement, tracking and logistics, foundation construction, busbar installation, and power and control cable installation.

From new installations to general maintenance, expansion, and rebuild work, MES has successfully completed execution of several transformers, HT/LT breaker panels, Earthing.

• Power & Distribution Transformers

• HT & LT Panels

• HT & LT Distribution Cables & End Kits

• Cable Trays

• Bus Duct

• Earthing

• Internal/ External Electrification

• Breaker Retrofitting

We provide complete turnkey projects & solutions for

Emergency Breakdown Service

Potentially the most disastrous situation for your business can be the failure of your power and distribution equipment.

MES offer a 24*7*365 days emergency call out service. So even if your equipment fails in the middle of the night, we will have someone on site immediately to help you with the breakdown. We offer round the clock technical support, also with mobile vehicles which remain on the field in case of a major fault or an unplanned loss of supply.

Our Mobile Emergency Vehicles are equipped with facilities like

• Primary, Secondary Current Testing Kits.

• High Voltage Testing Kits.

• Meggers.

• Winding Resistance Meters.

• Cork Gaskets, Oil Seals for leakage arresting.

• Testing Transformer oil on site.

• Breaker Retrofitting-We can retrofit the new breaker with the old one if the user wants to upgrade to a new one.
